SANTA FE
Performance

SANTA FE

e-Brochure

Own the road.

Smartstream Gasaline 2.5 T-GDI Engine

Max. Power

0ps

Max. Torque

0Nm

Smartstream Gasoline 1.6 T-GDI Hybrid Engine

Max. Power

0ps

Max. Torque

0Nm

Unleash your potential.

Power through
the challenges.

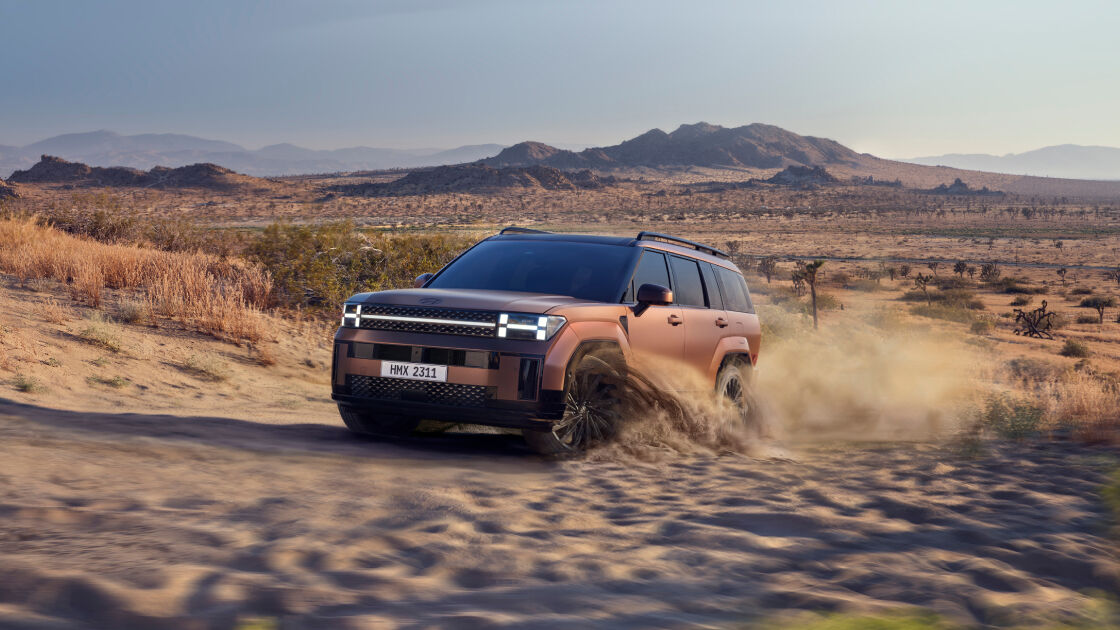

HTRAC

By actively and continuously distributing power to the front and rear
wheels in accordance with changes in the driving environment, the HTRAC
system provides a pleasant driving experience by automatically
compensating for environmental factors of which the driver may be
unaware. Drive safely and smoothly even through rain or snow.

Santa Fe - HTRAC

Register your interest

Fields marked * are mandatory

[Required]
English | Bahasa Malaysia

Consent to Use, Hold, Process, Release and/or Disclose Personal Data/Information


Submit
Specifications
SANTA FE Prime (7-seater)
1.6T-GDi Hybrid		 Prestige (7-seater)
1.6T-GDi Hybrid		 Calligraphy (6-seater)
2.5T-GDi
Price MYR 225,000.00 MYR 245,000.00 MYR 270,000.00
DIMENSION
Length mm 4,830
Width mm 1,900
Height mm 1,770 1,780
Wheelbase mm 2,815
ENGINE
Number of Cylinders Nm 4 inline
Cylinder Capacity 1.6 Litres (1,598) 2.5 Litres (2,497)
Intake System Turbocharged
Fuel System Turbo Gasoline Direct Injection (T-GDi)
Fuel Capacity Litre 67
Maximum Power kW(PS)/RPM 132.4 kW (180 PS) / 5.500 RPM 206.7 kW (281 PS) / 5,800 RPM
Maximum Torque Nm/RPM 265 Nm / 1.500-4.500 RPM 422 Nm / 1,700-4,000 RPM
Drivetrain 2WD 4WD
ELECTRIC MOTOR
Motor Type Permanent Magnet Synchronous Motor (PMSM) -
Battery Type / Capacity kWh Lithium-Ion / 1.49 kWh -
Configuration Transmission Mounted Electric Device (TMED) -
Maximum Power kW 44.2 kW -
Maximum Torque Nm/RPM 264 Nm / 1,700 RPM -
COMBINED SYSTEM OUTPUT
Maximum Power kW(PS)/RPM 172 kW (235 PS) / 5,600 RPM -
Maximum Torque Nm/RPM 367 Nm / 1,000 ~ 4,000 RPM -
TRANSMISSION
Type 6-Speed Automatic 8-Speed DCT
STEERING
Type Motor Driven Power Steering (MDPS)
SUSPENSION
Front / Rear MacPherson Strut / Multi-Link
Performance Damper Equipped
BRAKES
Front / Rear Ventilated Disc / Ventilated Disc
WHEELS & TYRES
Wheel Dimensions 18 x 7.5J 20 x 8.5J 21 x 8.5J
Tyre Dimensions 235/60R18 255/45R20 245/45R21
Spare Tyre Temporary Mobility Kit
VENTILATION & HEATING
Auto Climate Control - Dual Zone with 6.6-inch Touch Type Control Panels, Auto Defogging and Auto-Drying Functions Equipped
Heated 1st Row Seats Equipped
Ventilated 1st Row Seats - Equipped
Heated 2nd Row Outboard Seats - Equipped
3rd Row Seat Air-Conditioning System with Manual Fan Speed Control Equipped
ADVANCE SAFETY
Anti-Lock Braking System (ABS) Equipped
Electronic Stability Control (ESC) Equipped
Downhill Brake Control (DBC) Equipped
Brake Assist System (BAS) Equipped
Hill-Start Assist Control (HAC) Equipped
Multi-Collision Braking (MCB) Equipped
Vehicle Stability Management (VSM) Equipped
Tire Pressure Monitoring System (TPMS) Equipped
SRS Airbags 10
HYUNDAI SMARTSENSE
Blind-Spot Collision-Avoidance Assist (BCA) Equipped
Blind-Spot View Monitor (BVM) - Equipped
Driver Attention Warning (DAW) - Including Leading Vehicle Departure Alert (LVDA) Equipped
Forward Collision-Avoidance Assist (FCA1.5) - Including Car/Pedestrian/Cyclist Detection + Junction Turning Equipped -
Forward Collision-Avoidance Assist (FCA2.0)* - Direct Oncoming + Lane Change Oncoming + Lane Change Side + Driver Steering Assist + Auto Evasion Steering Assist - Equipped
High Beam Assist (HBA) Equipped
Lane Following Assist (LFA) Equipped
Lane Keeping Assist - Line/Road-Edge (LKA-L/R) Equipped
Parking Collision-Avoidance Assist - Reverse (PCA-R) - Equipped
Rear Cross-traffic Collision-Avoidance Assist (RCCA) Equipped
Safe Exit Assist (SEA) Equipped
Rear Occupant Alert (ROA) Equipped
Smart Cruise Control (SCC), Including Stop & Go Function (SCC w/ S&G) Equipped
Surround View Monitor (SVM) - with Dynamic Parking Guidelines, Including 3D Surround View Function + Driving Rear-View Monitor (DRM) Function + Trailer Connection Mode With Rear View Monitor Equipped
Remote Smart Parking Assist (RSPA) - Equipped
SECURITY SYSTEM
Anti-Theft Alarm Equipped
Engine Immobiliser Equipped
Exterior Styling
Dynamic Welcome Light (DWL) Function Equipped
Headlight Functions - Automatic Dusk Sensing with Escort and Welcome Equipped
H-light Head Lamps (LED) Multi-Focus Reflector (MFR) Dual Projector Lens
Front Radiator Grille Dark Chrome
Front Radiator Grille Equipped
C-Pillar Assist Handle - Hidden Type - Equipped
Dual Glass Sunroofs - Equipped
Smart Power Tailgate - Speed and Height Adjustable Equipped
INTERIOR STYLING
Headlining, Pillars and Sun Visors Suede
Interior Ambient Lighting - User Customisable Equipped
Steering Wheel Material Leather Leather 2-Tone
Seat Material Leather Nappa Leather
Power Adjustable 1st-Row Seats - Driver and Front Passenger Equipped Equipped (Driver Memory)
Relaxation Mode - Equipped (Driver)
Heads-Up Display - Equipped
Wireless Smartphone Charging Pad (Qi Standard) Single Pad Dual Pads
UV-C Sterilization Tray - Equipped
Bilateral Multi-Console Equipped
Front Center Console Power Outlets - 1 x USB-C Charger + 1 x USB-C Multimedia Input + 1 x 12V Socket Equipped
Front Seat Back Power Outlets - 2 x USB-C Chargers Equipped
2nd-Row Bench Seats with Manual Recline and Slide Functions Equipped -
2nd-Row Individual power captain chairs with adjustable armrests - Equipped
Walk-in Switch (Access to 3rd-Row Seats) Equipped
3rd-Row Seats with Manual Recline Function Equipped
3rd-Row Power Outlet - 2 x USB-C Chargers + 1x 12V Socket Equipped
Smart One Touch 2nd-Row Flat Folding Seats (Switch Operated) - Cargo Compartment Equipped
MULTIMEDIA SYSTEM
12.3” HD Curved Display with Capacitive Touch, AM/FM radio, USB-C Multimedia Input, Bluetooth® with Multi-Connection Navigation and Smartphone Connection Equipped
Speakers Equipped (6 Speakers) 12-Speakers BOSE Premium Audio System
DRIVING CONVENIENCE
Electronic Parking Brake (EPB) with Auto Hold Function Equipped
Integrated Memory System (IMS) - 2 Driver's Seat + Exterior Mirror Positions + Driver Seat Easy Access - Equipped
Remote Start - via Smart Key Equipped
Drive Mode - 3 Settings: ECO / SPORT / MY DRIVE Equipped
Terrain Modes - Equipped (SNOW/MUD/SAND)
Paddle Shifters Equipped
Instrument Cluster - 12.3” Colour TFT-LCD Full Screen Digital Display 4.2" Colour TFT Equipped
  • Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
  • Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
  • Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
  • Android Auto application is only available in certain region.
  • Sime Darby Auto Hyundai reserves the right to change the specifications and equipments without prior notice.
  • The colour plates or colour palettes shown may vary slightly from the actual colours due to limitations of the printing process.
  • Please consult your respective sales advisor for full information and availability on colours and trims.
  • Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
  • Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
  • Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
  • Android Auto application is only available in certain region.
  • Sime Darby Auto Hyundai reserves the right to change the specifications and equipments without prior notice.
  • The colour plates or colour palettes shown may vary slightly from the actual colours due to limitations of the printing process.
  • Please consult your respective sales advisor for full information and availability on colours and trims.
