The SANTA FE
FaceLift

Santa Fe

e-Brochure

Wise and Wide Care

No matter what kind of day lies ahead of you, Santa Fe will always give you a great start.
Whether you face your usual routine or a special occasion to surprise your family, Santa Fe will let you and your family move easily, comfortably and stylishly. Things are always better with Santa Fe, in all ways.

Rediscovering happiness.

Every new detail in the new Santa Fe, both visible and hidden, is geared towards one goal: family. Rediscover your family’s happiness with upscale designs that brighten up daily routines, interior spaces big enough to accommodate all types of lifestyles and advanced technology that keeps everyone safe at all times. Stay focused on your family’s happiness. Santa Fe will do the rest.

Making every day upscale.

Santa Fe’s perfectly-balanced stance will ensure an unrivaled presence on the road, helping you make every moment of your day brilliant.

Making every day comfortable.

Santa Fe’s interior isn’t just bigger – it’s filled with more thoughtfulness for the entire family. The high center console’s soft leather surface offers the comfort of an armchair, while the neatly-aligned buttons allow hassle-free control of various functions.

Gallery

360° VR

Click and turn the vehicle image to the left or right.

Exterior colours

Snowflake White Pearl

Register your interest

Fields marked * are mandatory

[Required]

[Required]Location

Salutation

[Required]Full Name

[Required]E-mail

[Required]Contact No.

English | Bahasa Malaysia

Consent to Use, Hold, Process, Release and/or Disclose Personal Data/Information

I have read the terms above and I give consent to Hyundai-Sime Darby Motors Sdn Bhd to process my personal data. I have read the terms above and I give consent to Hyundai-Sime Darby Motors Sdn Bhd to process my personal data.

Submit

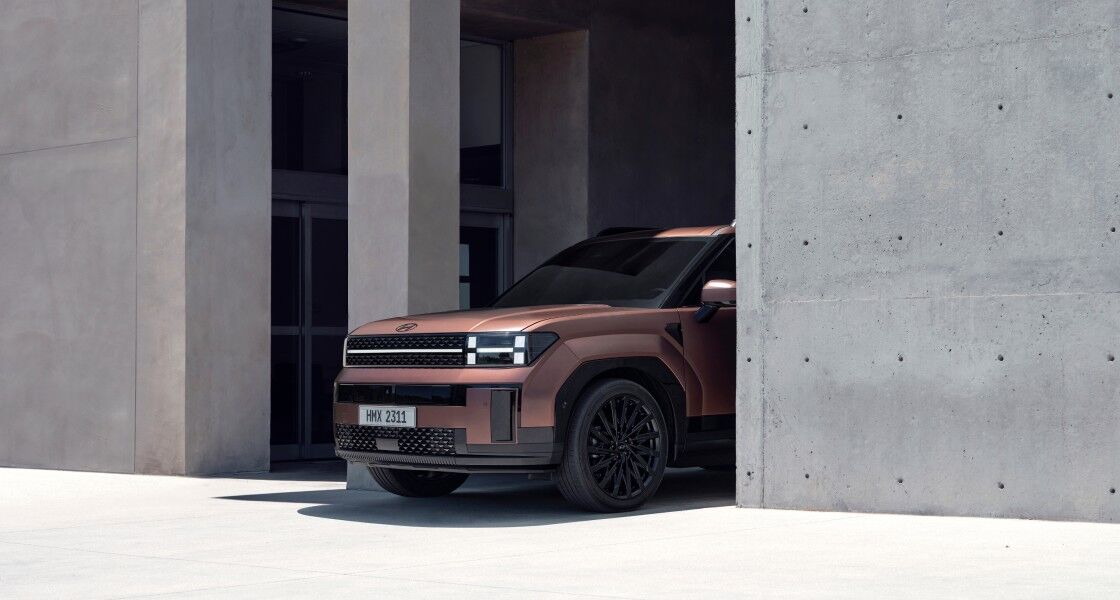

Front

Wide grille merging seamlessly with distinctive headlamps

Radiator Grille

Bi Function LED Projection

* Only available for 1.6 Turbo Hybrid Max and 2.2 Turbo Diesel Max variant.

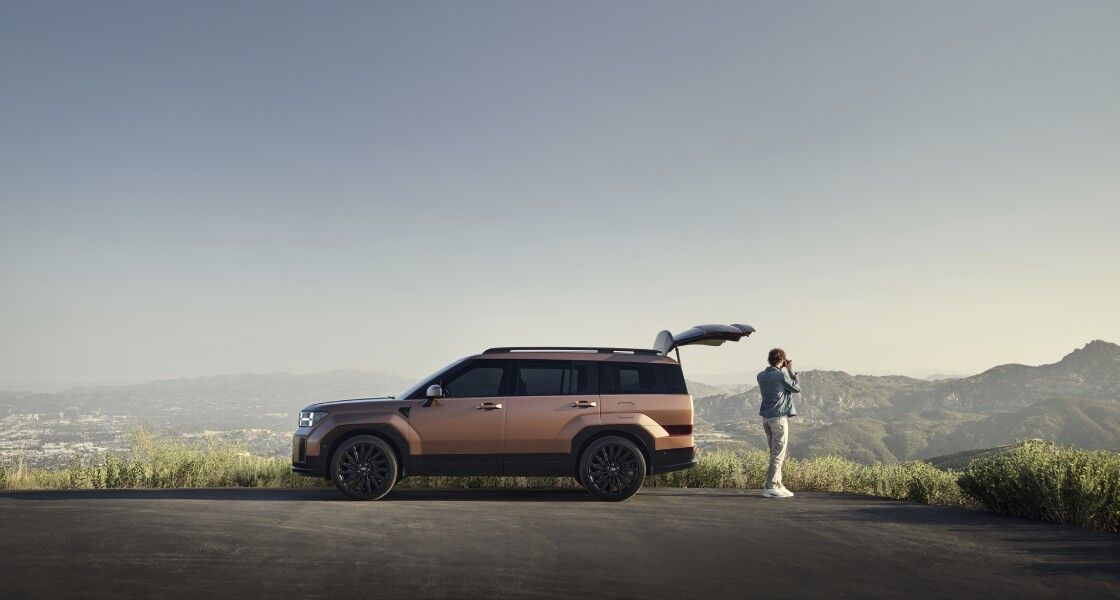

Side

Dynamic side proportions with perfectly-balanced stance

LED Outside Mirror Repeaters

Beltline Molding

Side Garnish

17" Alloy wheel

* Only available for 1.6 Turbo Hybrid Plus variant.

19" Alloy wheel

* Only available for 1.6 Turbo Hybrid Max variant.

20" Alloy wheel

* Only available for 2.2 Turbo Diesel Max variant.

Rear

Rear lamps delicately wrapping around the edges of the vehicle

LED Rear Combination Lamps

* Only available for 1.6 Turbo Hybrid Max and 2.2 Turbo Diesel Max variant.

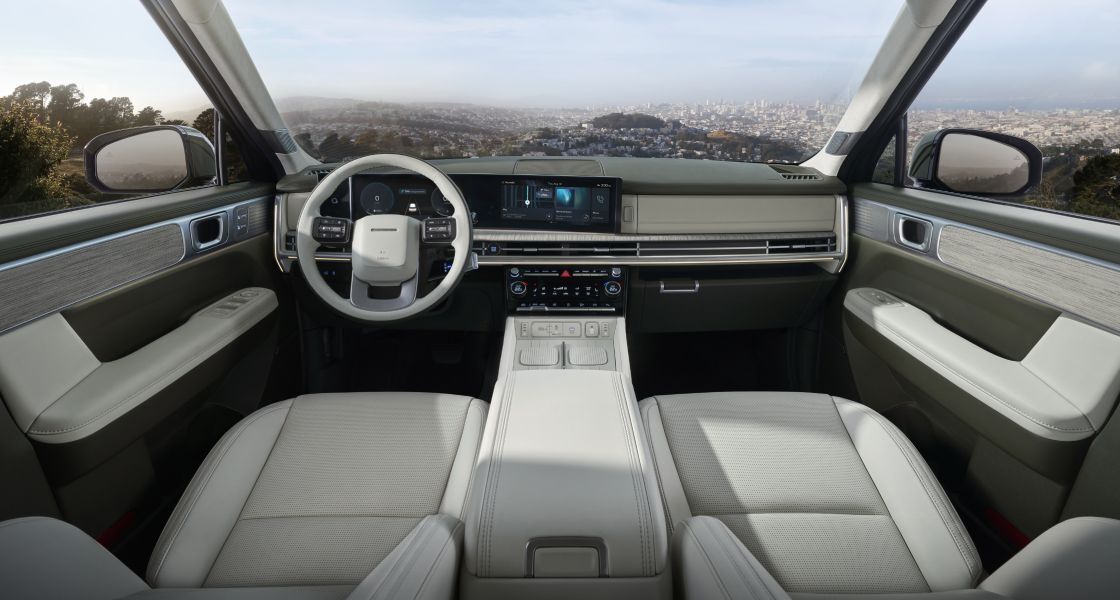

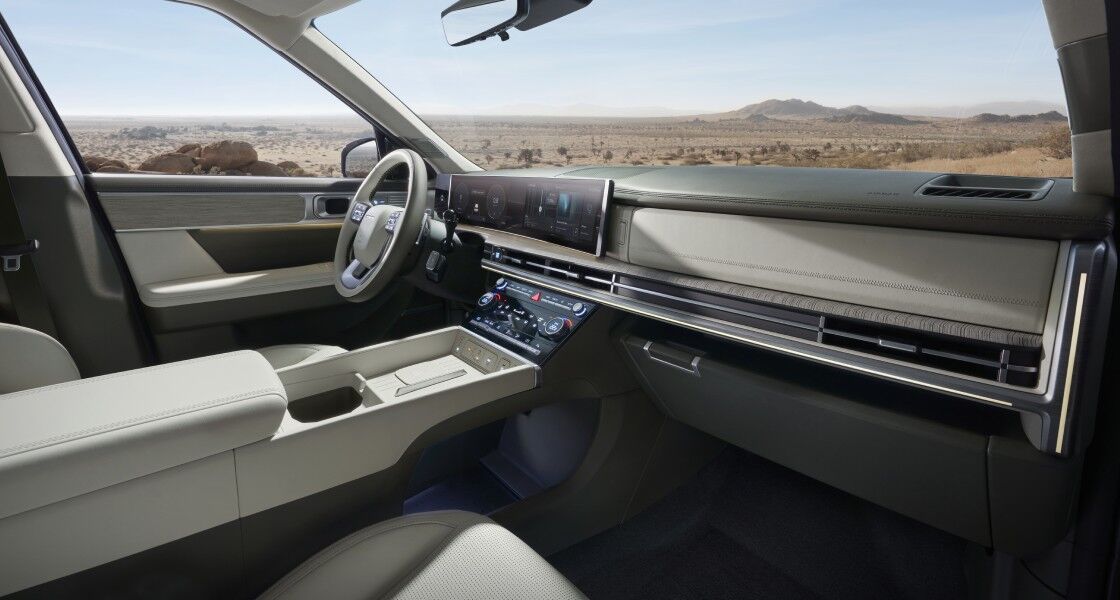

Interior

A premium space that outshines the competition by radiating pure luxury and high-tech.

Seat materials

Black One-tone

Interior Features

Upscaled Space surrounding you

Luxurious Bridge-type high console with button-type gear shift lever provides you with meticulous, hassle-free care while you drive.

SPACE

A wide choice of seat variations and convenient features will accommodate everyone, everywhere. A simple button is all it takes to fold and slide the second row seats forward for easier access to the third row seats. When both hands are full, thoughtful details like the Smart Tailgate will take a load off your shoulders.

2nd and 3rd Row Seats & Space

One-Touch Walk-in & Folding

Hyundai Santa Fe - USB outlets at all seats

Smart Power Tailgate

* Only available for 1.6 Turbo Hybrid Max and 2.2 Turbo Diesel Max variant.

7 seats

3rd row folded

3rd row folded and
2nd row folded 40%

3rd row folded and
2nd row folded 60%

2nd and 3rd row folded

Diverse power options
controlled easily.

Santa Fe’s powerful driving performance boasts not only eye-catching numbers, but a wide range of options such as dynamic or comfortable driving, depending on the road conditions. Santa Fe also automatically recognizes the core driving tendencies of different family members, offering optimal driving modes for each driver.

2.2 CRDi Diesel

A maximum power of 202ps at 3,800rpm and a maximum torque of 440Nm at 1,750~2,750rpm.

Perfectly aligned hybrid technology.

SUVs requires SUV-specific hybrid systems. That’s why Santa Fe uses an exclusive hybrid system, that delivers increased power to provide optimal driving and braking performance, as well as high fuel efficiency. A reallocated battery space also creates more room in the second row and cargo area.

1.6 T-GDi Hybrid

In order to achieve optimal hybrid performance as an SUV, an exclusive TMED (Transmission Mounted Electric Device) type is applied to the Santa Fe. This enhances the output power and performance of the electric motor, which produces a maximum power of 44.2kW and a maximum torque of 264Nm.

A maximum power of 230ps and a maximum torque of 350Nm.

Family SUV Ready for Every Road

Drive Mode

Simply turn knob to select the mode that suits you best: COMFORT for everyday driving, ECO for optimal fuel efficiency, SPORT for quicker acceleration, or SMART which automatically adjusts gear shift intervals based on recent driving patterns.

Multi Terrain Control

When the going gets tough, Snow, Mud and Sand modes assure optimal tire traction over different types of rough terrain.

* Only available for 2.2 Turbo Diesel Max variant.

Smart technology used wisely.

Simply adding a lot of technology to a car won’t make it safer. Rather, Santa Fe is designed to smartly minimize the dangers in our everyday driving environment to ensure safety. Santa Fe’s got your back.

Santa Fe's Advanced Driver Assistance System considers the various conditions a driver might unexpectedly face on the journey.

Lane Following Assist (LFA)

A front view camera detects the lanes on the road to help steer the vehicle and keep it centered inside the lane.
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

Santa Fe warns the driver if a collision risk is detected from the left or right side of the vehicle while reversing. If the risk increases even after the warning, RCCA helps to stop the vehicle.
Blind-Spot Collision-Avoidance Assist (BCA)

If there is a risk of collision from the blind-spot when changing lanes or exiting a parallel parking spot, BCA provides a warning and automatically controls the vehicle to help avoid a collision.

Forward Collision-Avoidance Assist (FCA)

FCA warns the driver when a forward collision risk is detected, including with a pedestrian, cyclist or vehicle. If the risk of collision continues to increase after the warning, it automatically assists with emergency braking.

Play Stop Next

LFA
RCCA
BCA
END

Highway Driving Assist (HDA)

HDA enables drivers to stay centered in a lane while keeping a set distance and speed from the vehicle ahead when driving on a highway, even in curved sections.

Forward Collision-Avoidance Assist (FCA)

FCA warns the driver when a forward collision risk is detected, including with a pedestrian, cyclist or vehicle. If the risk of collision continues to increase after the warning, it automatically assists with emergency braking.

Blind-Spot Collision-Avoidance Assist (BCA)

If there is a risk of collision from the blind-spot when changing lanes or exiting a parallel parking spot, BCA provides a warning and automatically controls the vehicle to help avoid a collision.

Safe Exit Assist (SEA)

SEA provides a warning if a vehicle approaching from the rear side is detected as the occupant opens the door to exit the vehicle. If you attempt to deactivate the child safety lock in such situations, SEA will override you to keep the rear doors closed.

Blind-Spot View Monitor (BVM)

BVM provides images of the vehicle’s rear blind spot on the cluster, making lane changes safe and easy.

* Only available for 1.6 Turbo Hybrid Max and 2.2 Turbo Diesel Max variant.

Safety Power Window

New Body Platform

A new, next-generation platform has been applied to the Santa Fe, maximizing vehicle stability on top of larger interior space. The new platform also brings with it significant improvements in collision safety, thanks to the increased usage of Advanced High-Strength Steel and hot stamping.

Enhanced Convenience
throughout Your Journey

Surround View Monitor (SVM)

4 HD cameras mounted on the front, sides, and rear of the vehicle show the surroundings in real time.

Personal Profile

Driver can conveniently select his/her own profile for preferred GPS settings, air conditioning, radio and other features.

Shift-By-Wire Automatic Transmission

Wireless Smartphone Charging System

Rear Occupant Alert

12.3" Full LCD Cluster

* Only available for 1.6 Turbo Hybrid Max and 2.2 Turbo Diesel Max variant.

Driver Attention Warning (DAW)

8" Display

Full Auto Air Conditioning System

Rear Door Manual Curtain

* Only available for 2.2 Turbo Diesel Max variant.

Specification

SANTA FE		1.6 Turbo Hybrid Plus	1.6 Turbo Hybrid Max	2.2 Turbo Diesel Max
DRIVE TRAIN
Engine		1.6 Gamma-II T-GDi Hybrid		2.2 CRDi
Displacement	cc	1,598		2,151
Bore x Stroke	mm	75.6 x 89		83.0 x 99.4
Compression Ratio		10.5:1		16:1
Max Power	PS/rpm	180 / 5,500		202 @ 3800
Max Torque	Nm	265 / 1,500 ~ 4,500		440 / 1,750 ~ 2,750
Max Speed	km/h	185		205
Acceleration (0-100km/h) (sec)		8.9		9.4
Transmission		6-Speed Automatic		8-Speed DCT
Drive System		2 Wheel Drive (FWD)		4 Wheel Drive (HTRAC)
ELECTRIC MOTOR
Motor Type		Permanent Magnet Synchronous Motor (PMSM)		-
Configuration		Transmission Mounted Electric Device (TMED)		-
Maximum Torque	kW/Ps	44.2 / 60		-
Maximum Torque	Nm	264 @ 1,600 RPM		-
COMBINED SYSTEM OUTPUT
Maximum Power	kW/Ps	169 / 230 @ 5,500 RPM		-
Maximum Torque	Nm	350 @ 1,000-4,500 RPM		-
DIMENSION
O.A.L (mm)		4,785
O.A.W (mm)		1,900
O.A.H (mm)		1,685 (1,710 with Roof Rack)
Wheelbase (mm)		2,765
Ground Clearance (mm)		176		206
Ground Clearance (mm)		67
SUSPENSION
Front		MacPherson Strut
Rear		Multi Link
BRAKES
Front Brake Type		Ventilated Disc 17"
Rear Brake Type		Ventilated Disc 17"
Electronic Parking Brake		Equipped with Auto Hold
WHEELS & TYRES
Wheels		Alloy 17"	Alloy 19"	Alloy 20"
Tyres		235/65 R17	235/55 R19	255/45 R20
Spare Tyre Type		Full Size Alloy (235/65 R17)	Full Size Alloy (235/55 R19)	Tyre Mobility Kit
SAFETY
Airbag		6
Anti-lock Braking System (ABS)		Equipped
Brake Assist System (BAS)		Equipped
Electronic Stability Control (ESC)		Equipped
Multi Collision Brake (MCB)		Equipped
Hill-Start Assist Control (HAC)		Equipped
Downhill Brake Control (DBC)		Equipped
Power Child Lock		Equipped
Parking Assist System		Front & Rear
ISOFIX		1-Front Passenger & 2-Second Row Seats
DRIVER ASSISTANCE - HYUNDAI SMARTSENSE™
Cruise Control (CC)		Smart Cruise Control (SCC)
Blind-Spot Collision Warning (BCW)		Equipped
Blind-Spot Collision-Avoidance Assist (BCA)		Equipped
Driver Attention Warning (DAW)		Equipped
Forward Collision-Avoidance Assist (FCA)		Equipped
High Beam Assist (HBA)		Equipped
Lane Following Assist (LFA)		Equipped
Lane Keeping Assist (LKA)		Equipped
Leading Vehicle Departure Alert (LVDA)		Equipped
Rear Cross Traffic Collision-Avoidance Assist (RCCA)		Equipped
Rear Occupant Alert (ROA)		Equipped
Safe Exit Warning (SEW)		Equipped
Blind-Spot View Monitor (BVM)		-	Equipped
STEERING
Steering Type		Column Type (MDPS)		Rack & Pinion (MDPS)
Tilt & Telescopic		Manual
EXTERIOR
Headlamps		LED Multi MFR	Bi Function LED Projection
Tail Lamps		Bulb	LED
LED Daytime Running Light		Equipped
Roof Rack (Aluminum)		-	Equipped	Equipped
Radiator Grille		Non-Painted	Dark Chrome Coating
Bumper Moulding		Bright Colour	Chrome
Skid Plate		Natural	Chrome
Door Garnish		Black Paint	Chrome Coating
Door Handle		Body Colour		Chrome
INTERIOR
Seat Material		Leather
Seat Adjustment		Power Seat (Driver & Passenger)	Power Seat (Driver & Passenger) w/ Integrated Memory (Driver)	Power Seat (Driver & Passenger)
Heated Front Seats (3-Stage)		Equipped		-
Ventilated Front Seats (3-Stage)		-	Equipped	-
Power Cushion Extension		-	Driver Seat Only	-
Walk-In Device for Rear Seat		Equipped
2nd Row Remote Seat Folding		Equipped
2nd Row Seat Operation		60:40 Split Folding & Dive for 3 Passengers
3rd Row Seat Operation		50:50 Split Folding for 2 Passengers
Leather Steering Wheel		Leather
Instrument Cluster		Supervision 4.25 inch TFT LCD + Rheostat	Full Digital 12.3 inch TFT LCD + Rheostat
Ambient Lighting		-	Equipped
Door Scuff		Standard	Deluxe
Leatherette Crash Pad		-		Equipped
Headlining		Standard Cloth	Deluxe Cloth
Power Window		Driver, Passenger & Rear
Cargo Space- VDA (ℓ)		634 (Seat-up) / 2,396 (Folded)
MULTIMEDIA SYSTEM
Audio System & Connectivity		8" Touchscreen with Wireless Android Auto & Apple CarPlay with Voice Recognition
Speakers		4 Speakers + 2 Tweeters
Steering Wheel Audio Control		Equipped
Bluetooth Connectivity; with Voice Recognition		Equipped
COMFORT & CONVENIENCE
Smart Key with Push Start Button		Equipped
Shift-By-Wire (SBW)		Equipped
Paddle Shift		Equipped
Tyre Pressure Monitoring System (TPMS)		Equipped
Electronic Chromic Mirror (ECM)		Equipped
Wireless Charging		Equipped
A/C Inverter (220V)		Equipped		-
Auto Wiper		Equipped
Power Tailgate		-	Equipped
Head-Up Display		-	Equipped
Drive Mode Select		Eco, Normal, Sport, Smart		Eco, Normal, Sport, Smart + Terrain Mode (Snow, Mud, Sand)
Parking Camera		Rear View Monitor with Dynamic Parking Guidance"	Surround View Monitor
Rear Window Curtain (Manual)		-	-	Equipped
Power Outlet		2 (Center Console, Luggage Side)
USB Port		5 (1 x Connectivity; 4 x Charging)
Navigation		Waze / Google Map (Android Auto / Apple CarPlay)
Air Conditioner		Dual Zone Auto with Rear Aircond Vent

Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
Android Auto application is only available in certain region.
Hyundai-Sime Darby Motors reserves the right to change the specifications and equipments without prior notice.
The colour plates shown may vary slightly from the actual colours due to limitations of the printing process.
Please consult your respective dealers for full information and availability on colours and trims.

Santa Fe	R 2.2 CRDi
Variants	Executive	Executive S.E	Premium	Premium S.E
Price	RM 190,888.00	RM 196,888.00	RM 209,888.00	RM 215,888.00
ENGINE
Type	Diesel
Displacement	cc	2199
Bore x Stroke	mm	85.4 x 96
Compression Ratio	16
Max Power	PS/rpm	193 / 3,800
Max Torque	Nm/rpm	440 / 1,750~2,750
Transmission	8-Speed Automatic Transmission
Active on-Demand 4WD (HTRAC)	Standard
Drive Mode	Standard with Integrated Control
BRAKES
Front Brake Type	Ventilated Disc
Rear Brake Type	Solid Disc
Electric Parking Brake (EPB)	Standard with Auto Hold
SUSPENSION
Front Brake Type	McPherson Strut
Rear Brake Type	Multi-link
Shock Absorber (Front)	Strut type (Gas)
Shock Absorber (Rear)	Shock Absorber Type (Gas)
WHEELS & TYRES
Wheels	8.0Jx18	7.5Jx18	8.0Jx19	8.0Jx19
Tyres	235/60R18	235/60R18	235/55R19	235/55R19
SAFETY & SECURITY
Airbag	6-airbag
Electronic Stability Control (ESC)	Standard
Antilock Braking System (ABS)	Standard
Downhill Brake Control (DBC)	Standard
Hill-start Assist Control (HAC)	Standard
Brake Assist System (BAS)	Standard
Traction Control Sytem (TCS)	Standard
Vehicle Stability Management (VSM)	Standard
Immobiliser	Standard
Rear Occupant Alert (ROA)	N/A	N/A	Standard	N/A
Blind-Spot Collision Warning (BCW)	N/A	N/A	Standard	N/A
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)	N/A	N/A	Standard	N/A
STEERING
Motor Driven Power Steering (MDPS)	Standard
Tilt & Telescopic	Standard
Min. Turning Radius (m)	5.71
EXTERIOR
HeadLamp	Projection Halogen	Projection Halogen	Bi Function LED Projection	Projection Halogen
Daytime Running Light (DRL)	Dedicated LED
Position Lamp	LED
Dynamic Bending Light	N/A	N/A	Standard	N/A
Rear Lamp Combination	Bulb Type	LED Rear Combi Lamp	LED Type	LED Rear Combi Lamp
Fog Lamp	Front only Bulb Type	Front only Bulb Type	Front & Rear LED Type	Front only Bulb Type
Outside Mirror Electric Control & Folding	Standard with Puddle Lamp
Outside Mirror Side Repeater	Standard
Wiper Type	Aero	Normal	Aero	Normal
INTERIOR
Leather Seats	Black	Black	Nappa Leather	Nappa Leather
Driver's Power Seat	12-Way Driver Power Seat	10-Way Driver Power Seat	12-Way Driver Power Seat	10-Way Driver Power Seat
Front Passenger's Power Seat	Manual	Manual	8-Way Power Seat	8-Way Power Seat
Walk-in Device on Passenger Seat	N/A	N/A	Standard	Standard
Smart One Touch Walk-in	Standard
Leather Steering Wheel and Knob	Standard
Dashboard Trim	N/A	N/A	Leather	Leather
Pillar, Sunvisor & Roof Trim	Standard Cloth	Standard Cloth	Deluxe Cloth or Suede	Deluxe Cloth
Cluster Meter	3.5" TFT LCD	3.5" TFT LCD	7" Supervision TFT LCD	7" Supervision TFT LCD
AUDIO
Audio System	Floating-typed 7" Display with Apple CarPlay and Android Auto*
Connectivity	AUX + USB + Bluetooth with Voice Recognition
Steering Wheel Audio Control	Standard
COMFORT & CONVENIENCE
Safety Power Window (Driver's side)	Auto Up & Down with Safety
Smart Key with Start Stop Button	Yes
Air Conditioning System	Dual Full Auto Air Conditioner with Cluster Ionizer and Auto Defog System
Back Warning Camera	Standard
Parking Distance Warning (PDW)	Front & Rear
Auto Light Control	Standard
Auto Cruise Control	Standard
Roof Rack	Standard
Inside Rear View Mirror	Day & Night	Day & Night	ECM with Compass	Day & Night
Power Tailgate	N/A	N/A	Standard	Standard
Wireless Phone Charger	N/A	N/A	Standard	N/A
Rain Sensor	N/A	N/A	Standard	N/A
Power Outlet	1 Front, 1 Luggage Side
USB Port & Charger	2 Front, 2 Rear
Panoramic Sun Roof	Equipped
Paddle Shifter	Equipped

Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
Android Auto application is only available in certain region.
Hyundai-Sime Darby Motors reserves the right to change the specifications and equipments without prior notice.
The colour plates shown may vary slightly from the actual colours due to limitations of the printing process.
Please consult your respective dealers for full information and availability on colours and trims.

The SANTA FE FaceLift
