The new TUCSON

TUCSON

e-Brochure

Overtake the ordinary.

The new TUCSON signals the start of a new day, and a new way of driving. Rejecting the ordinary, the new TUCSON pushes the boundaries of the segment to reinvent everything. Outside, the new TUCSON is designed to impress while inside, you’ll discover a level of roominess, comfort and versatility that exceeds all expectations.

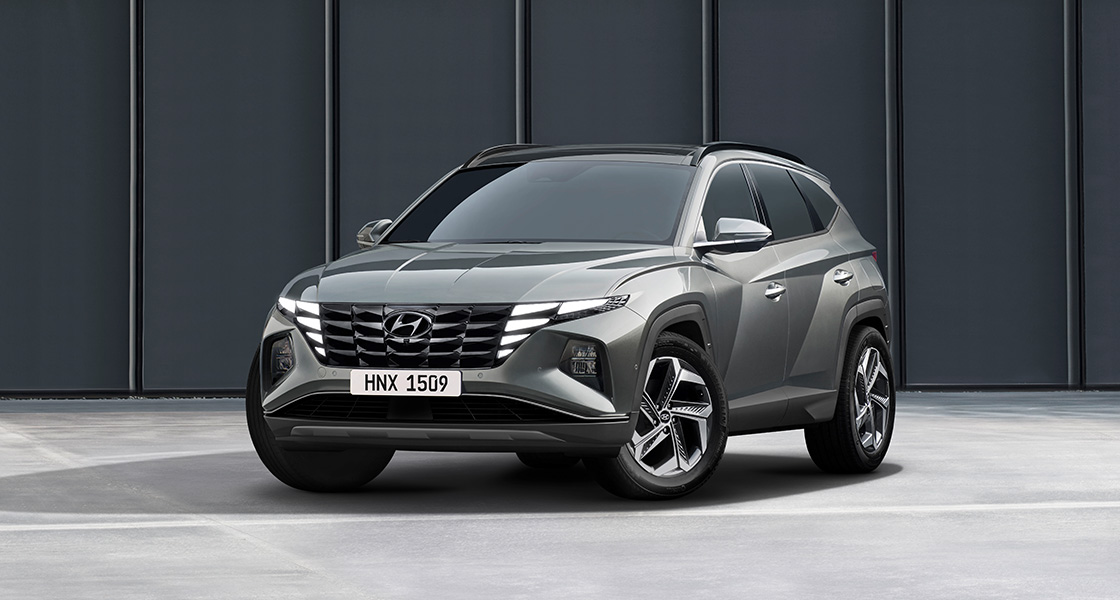

Hyundai Tucson features highlights

Design that’s thrilling and timeless.

With its 3D parametric-style grille and jewel-like surfaces,
the new TUCSON is for trendsetters with a taste for futuristic design. Adopting a daring new design language we call Sensuous Sportiness and created with cutting-edge digital design tools, the new TUCSON stands out from the crowd.
Hyundai Tucson feature highlights
Hyundai Tucson feature highlights

Reason to believe.

Boasting an innovative sporty SUV look, the new TUCSON comes with an interior space that’s equal to mid-sized vehicles as well as improved specifications for safety and convenience.
Hyundai Tucson

360° VR

Exterior colors

Amazon Gray Metallic

  • * Only available in Prestige variant.

Register your interest

Fields marked * are mandatory

[Required]
English | Bahasa Malaysia

Consent to Use, Hold, Process, Release and/or Disclose Personal Data/Information


Submit

Exterior

Tucson exterior front design

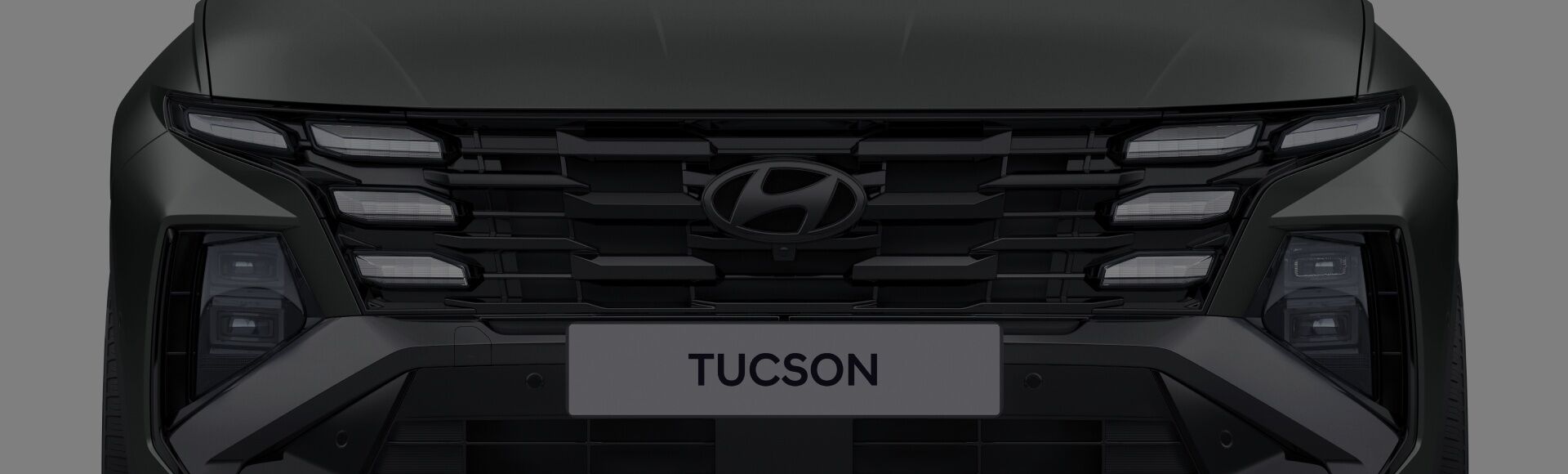

Front

Unique wing-shaped image with bold and wide grille.

Tucson dark paint radiator grille

LED Headlamp MFR with Static Bending Light

  • * Only available in Style and Prime variants.
Tucson LED headlamps

LED Headlamp (Projector Beam with Intelligent Front Lighting System (IFS)

  • * Only available in Prestige (1.6T-GDi & 1.6T-GDi Hybrid) variant.
Tucson dark paint radiator grille

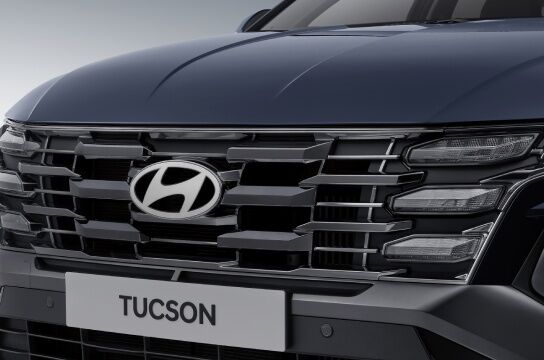

Dark Metal Paint Radiator Grille (Clear Type DRL)

Tucson LED headlamps

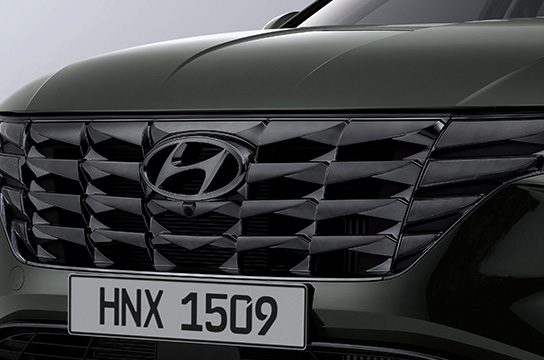

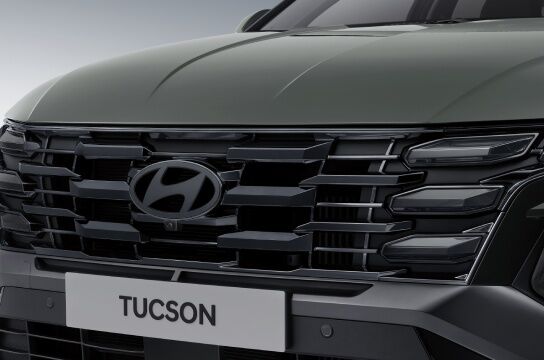

Dark Chrome Grille (Dark Silver H Badge) with Hidden DRL

Tucson Powerful long hood design

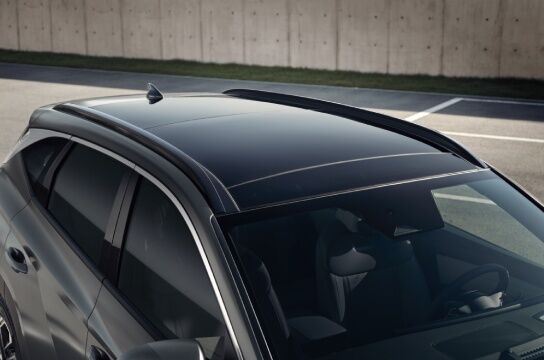

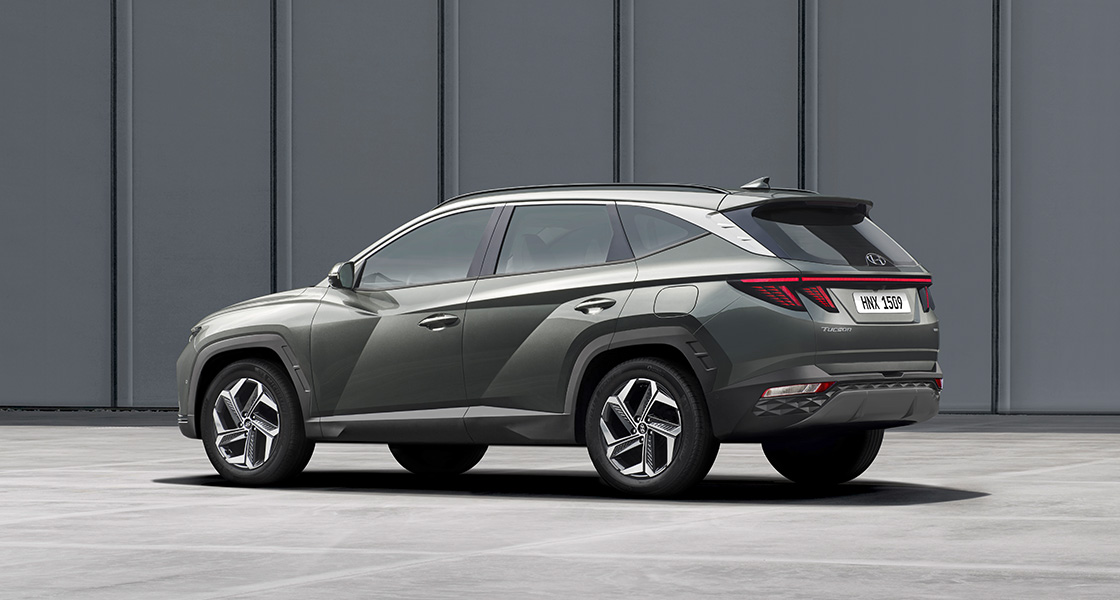

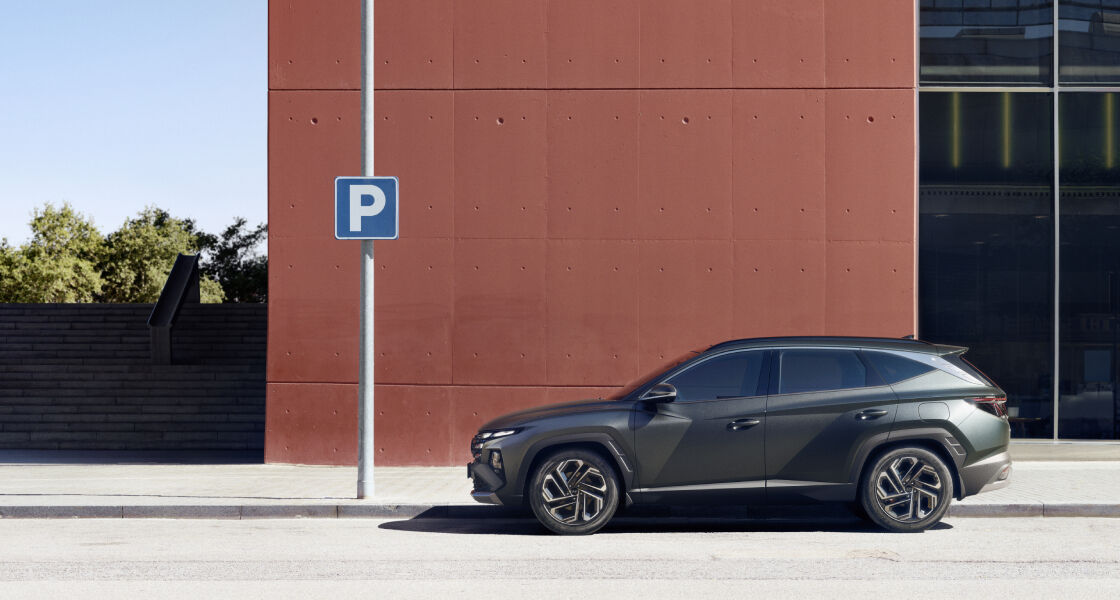

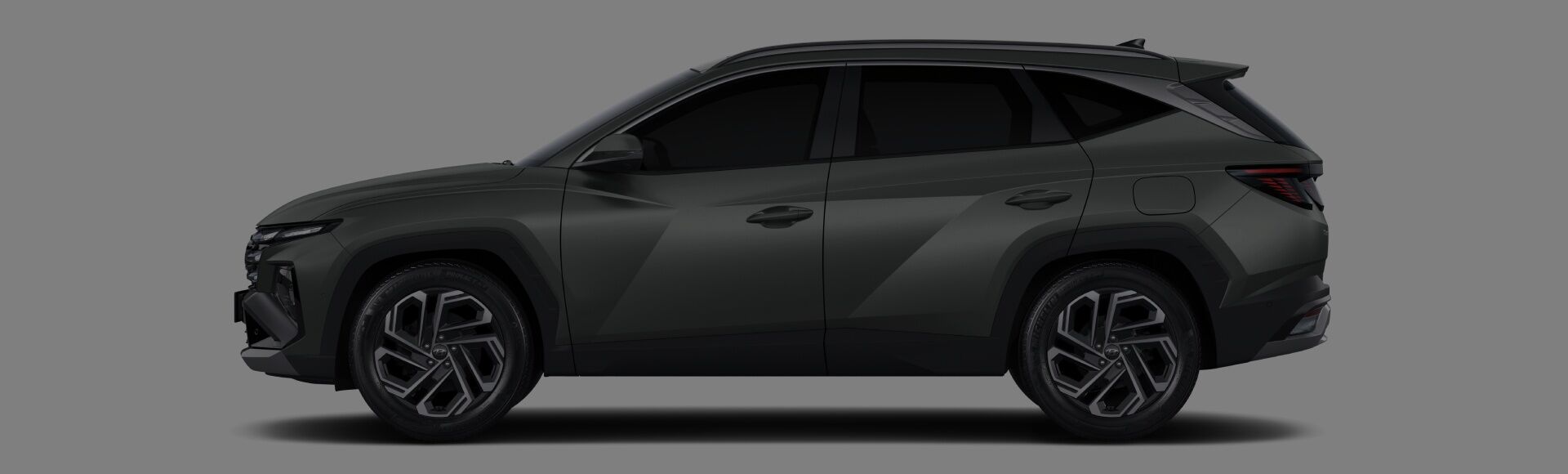

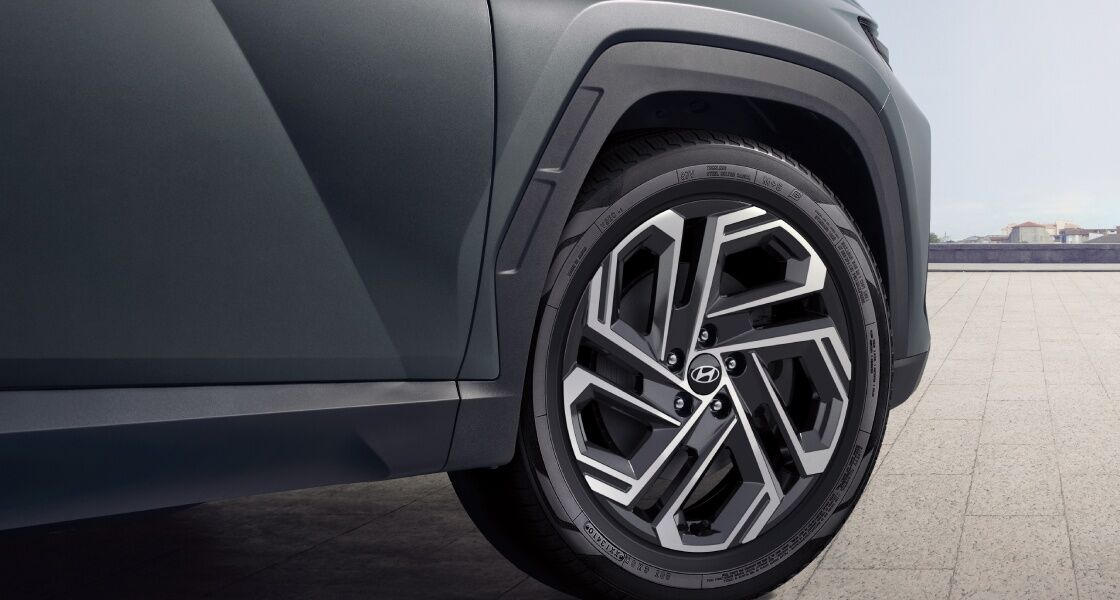

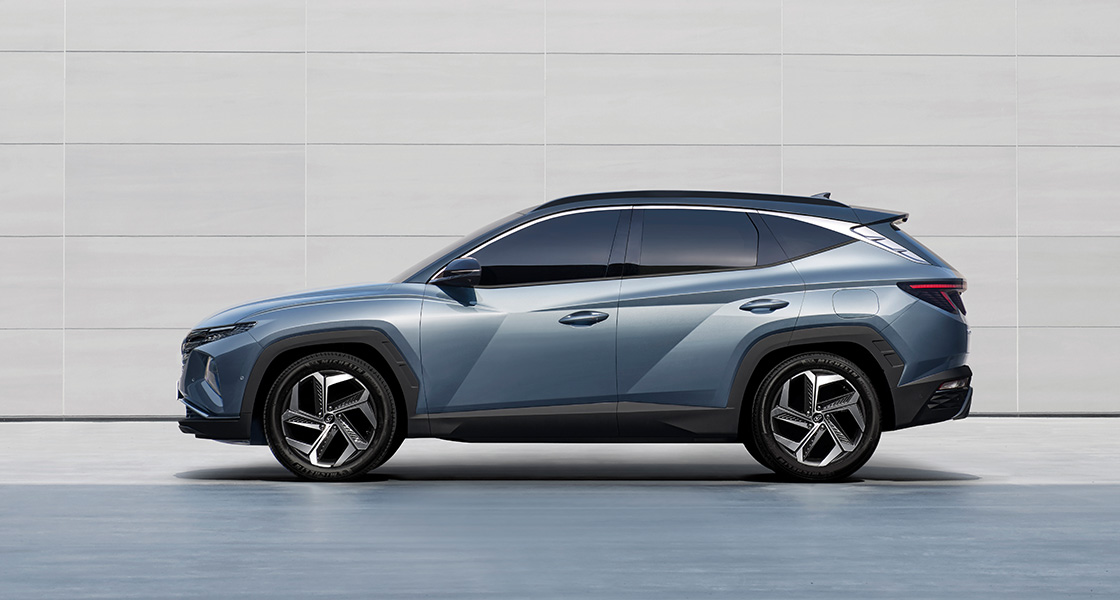

Side

Tucson exterior rear design

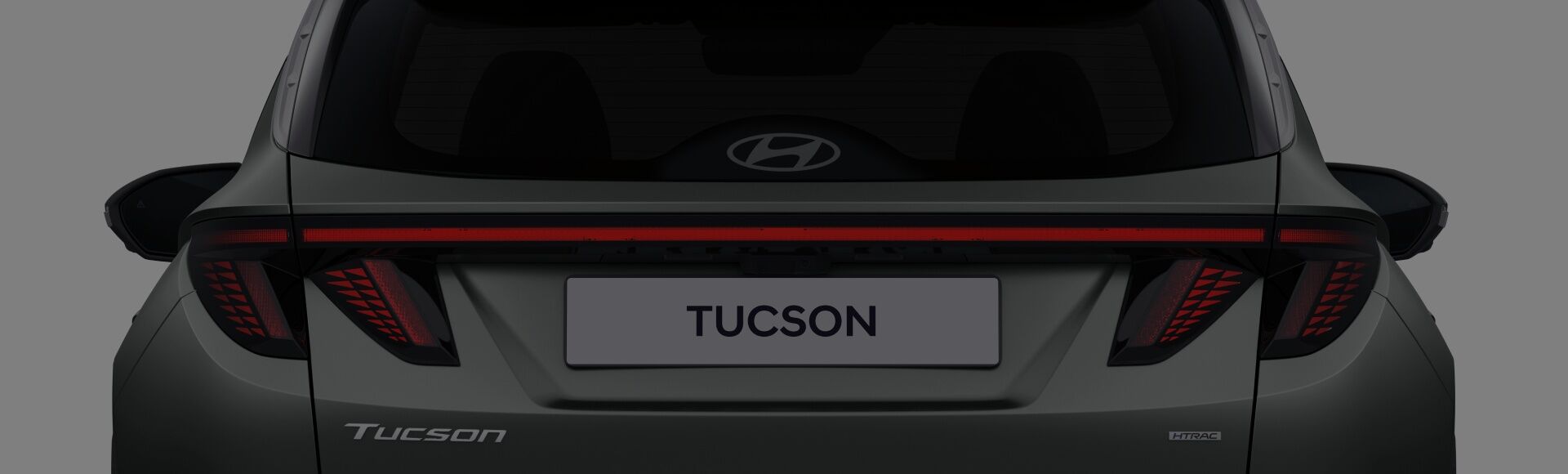

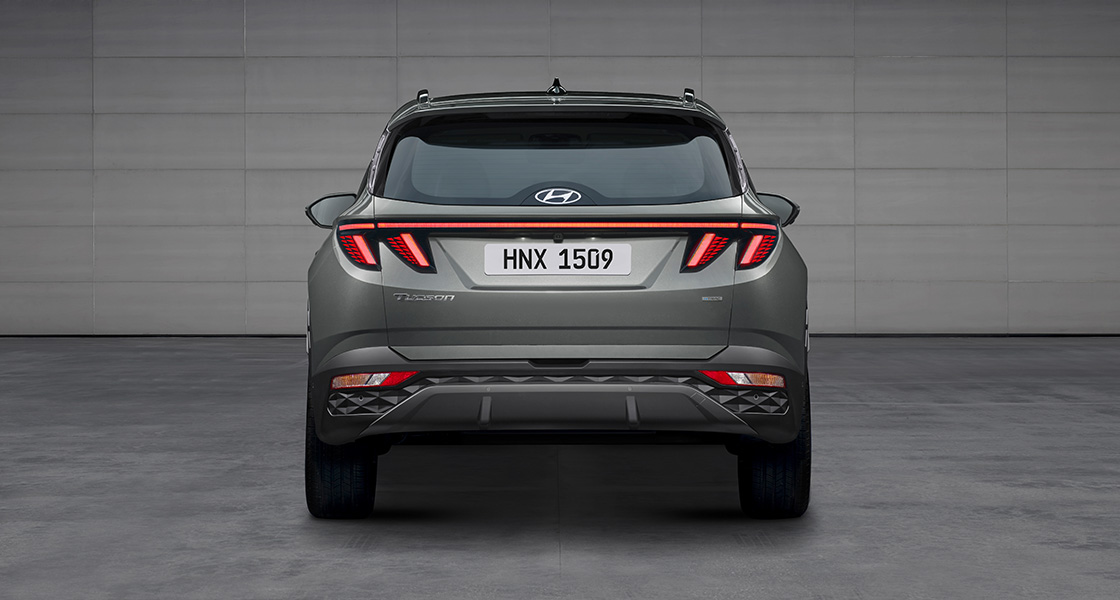

Rear

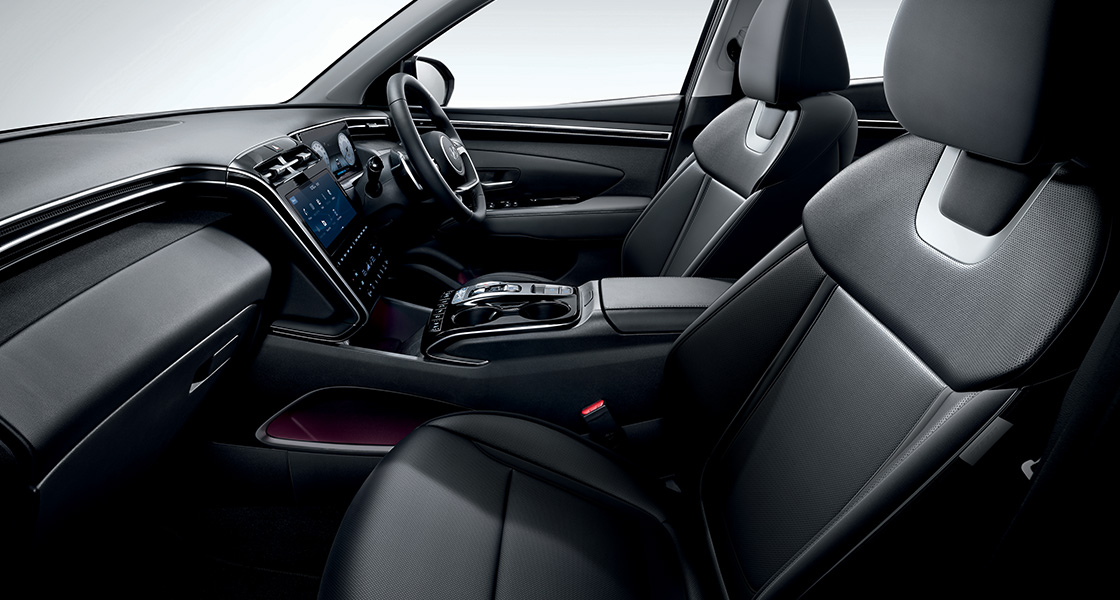

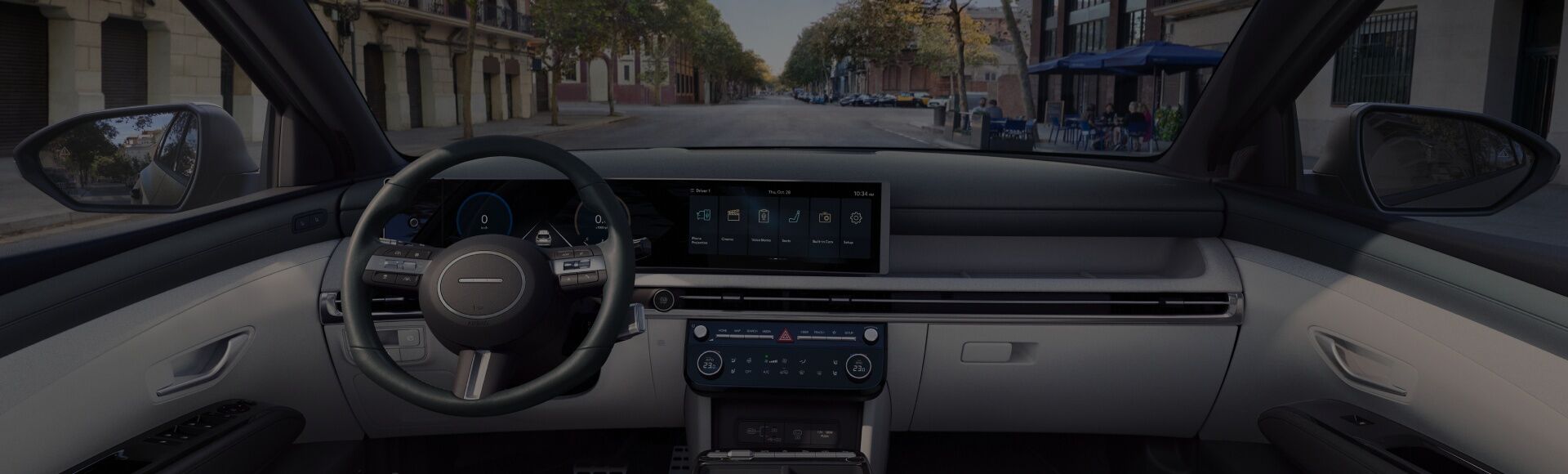

Interior

  • Tucson - Performance Drive Mode

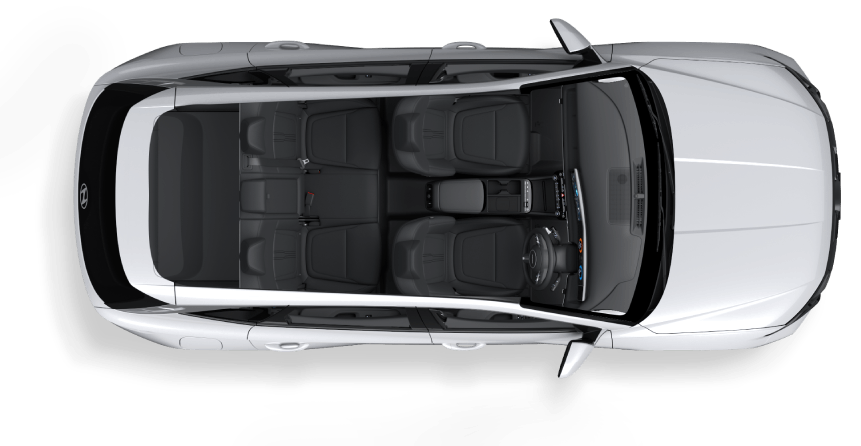

    Black Mono + Pattern Insert Film (NNB)

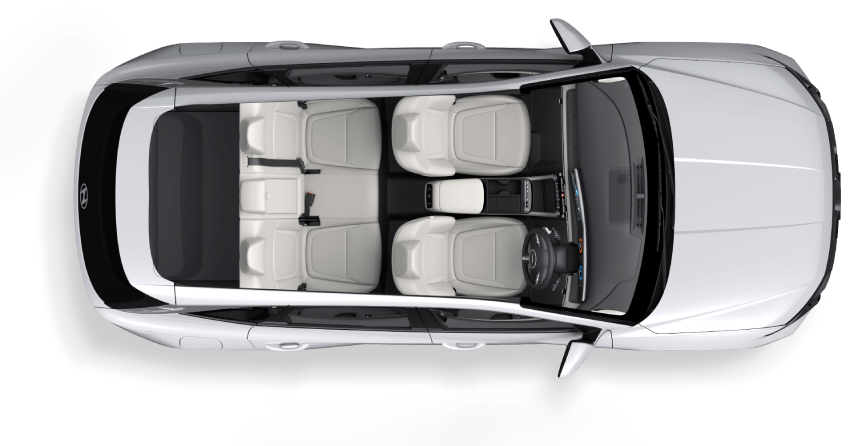

  • Tucson - Performance Eco Mode

    Mossy Grey (MMH)

    • * Only available in Prestige variant.

Premium 7-seater

Interior Features

A wide and curved display for a seamless view

Tucson 10dot25 inch open-type cluster

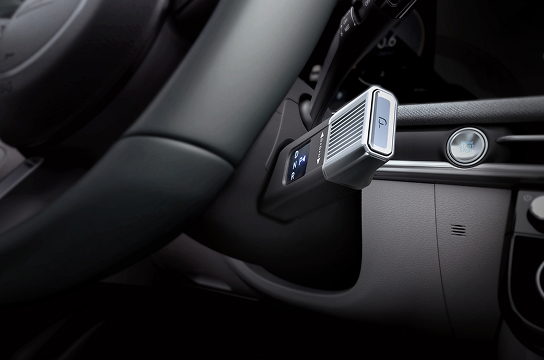

Column-type Shift by Wire (SBW)

  • * Only available in Prestige variant.
Tucson Button-type SBW (Shift-by-wire)

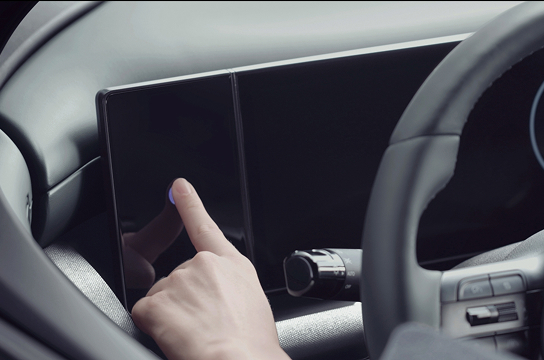

Fingerprint Authentication

  • * Only available in Prestige variant.
Tucson 10dot25 inch open-type cluster

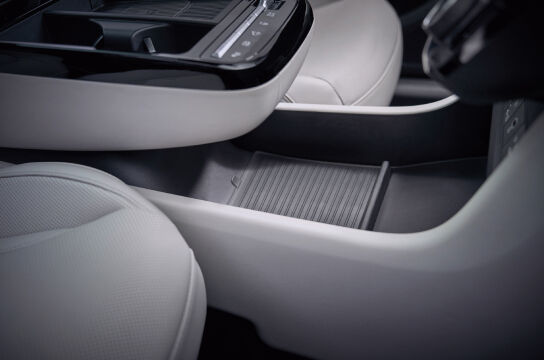

Floating-type Console

Tucson Button-type SBW (Shift-by-wire)

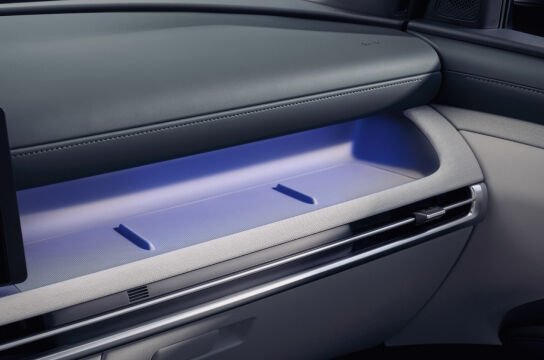

Ambient Mood Lamp / Multi-tray

  • * Only available in Prime and Prestige variants.
Tucson 10dot25 inch open-type cluster

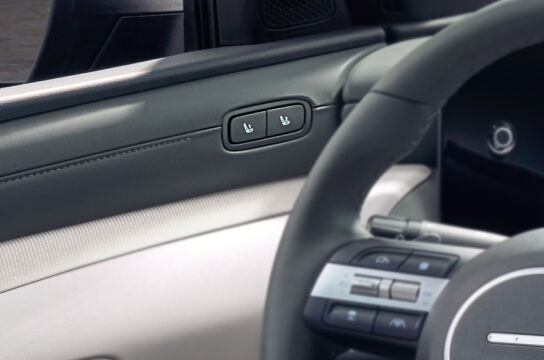

Integrated Memory Seat

  • * Only available in Prestige variant.
Tucson Button-type SBW (Shift-by-wire)

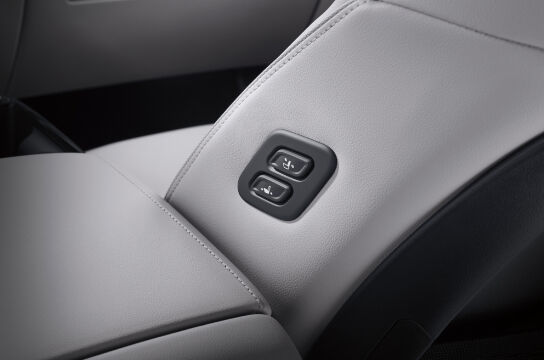

Walk-In-Device (Passenger)

  • * Only available in Prestige variant.

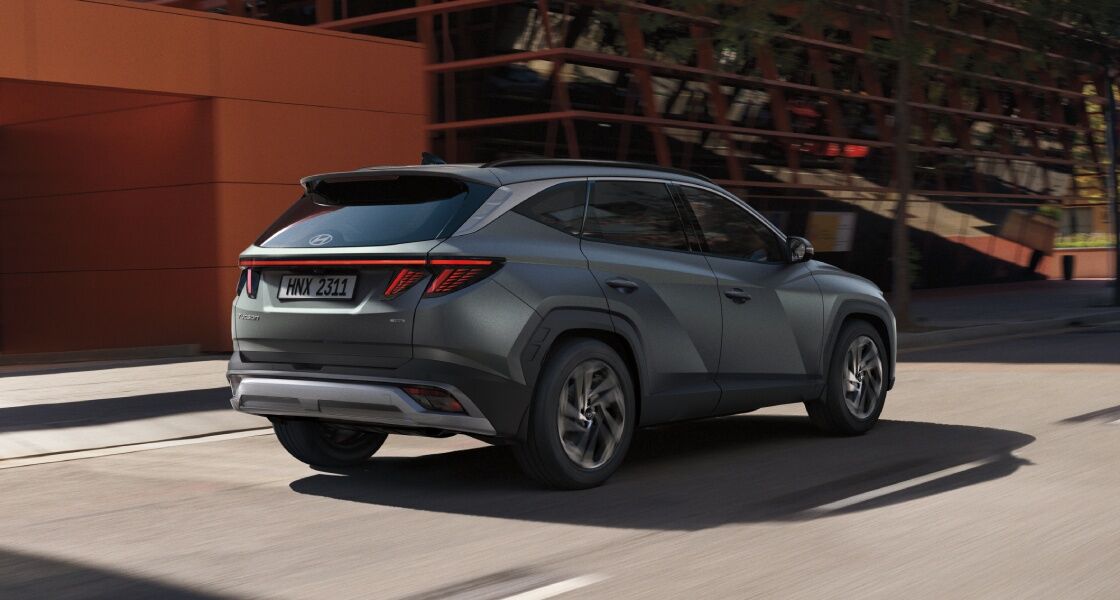

Ready for the road.

Equipped with next-generation powertrains, ensuring top-tier performance and optimal solutions for various driving scenarios.
Ready for the road - Tucson

Engines

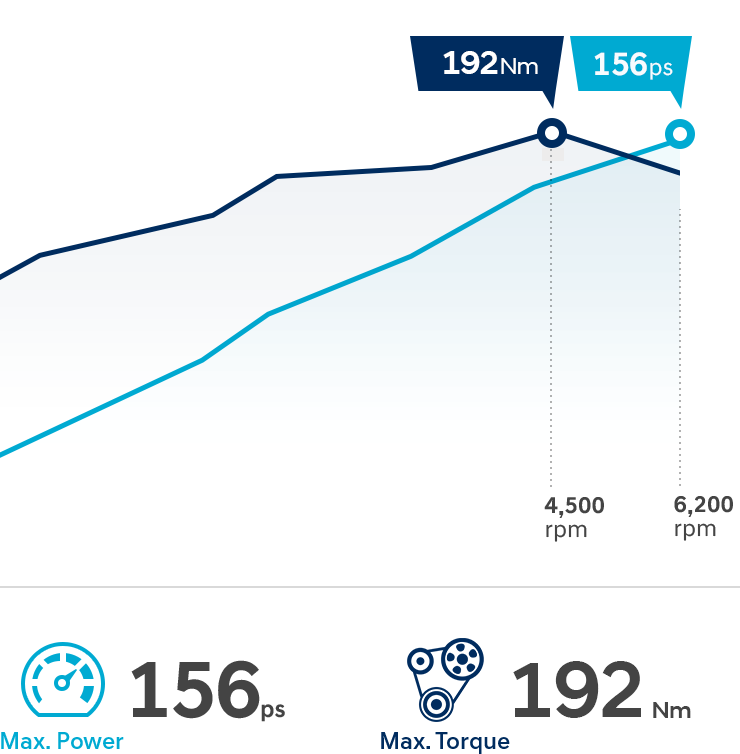

Smartstream Gasoline 2.0


A maximum power of 156ps at 6,200rpm and
a maximum torque of 192Nm at 4,500rpm.

Max.
Power
156 ps
Max. Torque
192 Nm
A maximum power of 156ps at 6,200rpm and

a maximum torque of 192Nm at 4,500rpm.

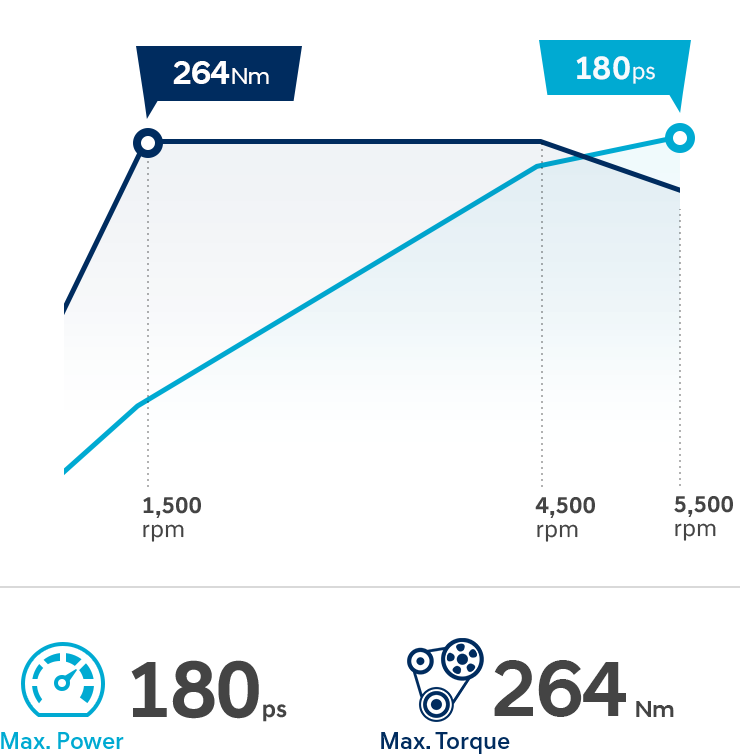

Smartstream Gasoline 1.6T-GDi


A maximum power of 180ps at 5,500rpm and
a maximum torque of 264Nm at 1,500~4,500rpm.

Max.
Power
180 ps
Max. Torque
264 Nm
A maximum power of 180ps at 5,500rpm and

a maximum torque of 264Nm at 4,500rpm.

Smartstream 1.6T-GDi HEV

A maximum power of 235ps & Motor maximum
torque of 367Nm

Max.
Power 235ps
Max.
Torque 367Nm

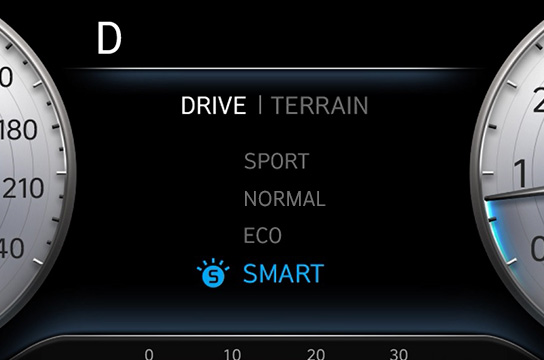

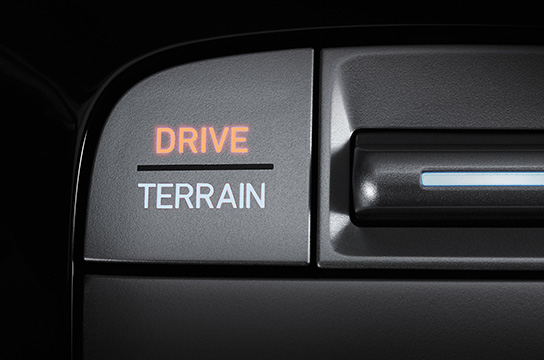

Drive Mode

Drive Mode

With Drive mode, you get to pick the style suits you best: NORMAL is for relaxed everyday driving while ECO gives you optimal fuel efficiency.
SPORT is for quicker acceleration, and SMART automatically adjusts gear shift intervals based on an analysis of your recent driving patterns.
Drive Mode
Hyundai SmartSense
The new TUCSON offers an improved and expanded range of SmartSense technologies.
































































  • Forward Collision-avoidance Assist (FCA)

    Analyzing the information of front radar and camera, If the collision with car, pedestrian or cyclist is estimated, Warning signals and automatic braking help a driver to avoid or mitigate an accident.

    * Only available for Prime & Prestige variant.

    Lane following assist (LFA)
  • Lane Following Assist (LFA)

    Should you drift out of the driving lane without signalling, LFA uses audio and visual cues to alert you to the danger. LFA’s camera constantly monitors the painted lane markings using machine vision to ensure that the vehicle is driven within the lanes. When necessary, automatic steering correction is applied to keep you safely centered in the lane.

    * Only available for Prime & Prestige variant.

    Blind-spot Collision Warning (BCW)
  • Blind-Spot Collision-Avoidance Assist (BCA)

    When operating the turn signal switch to change lanes, if there is a risk of collision with a rear side vehicle, it provides a warning. After the warning, if the risk of collision increases, it automatically controls the vehicle to help avoid a collision.

    * Only available for Prime & Prestige variant.

    Forward Collision-Avoidance Assist (SCC)
  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

    The new TUCSON warns the driver if a collision risk is detected from the left or right side of the vehicle while reversing. If the risk increases even after the warning, RCCA helps to stop the vehicle.

    * Only available for Prime & Prestige variant.

    Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
Play Stop

  • FCA
  • LFA
  • BCA
  • RCCA
  • END

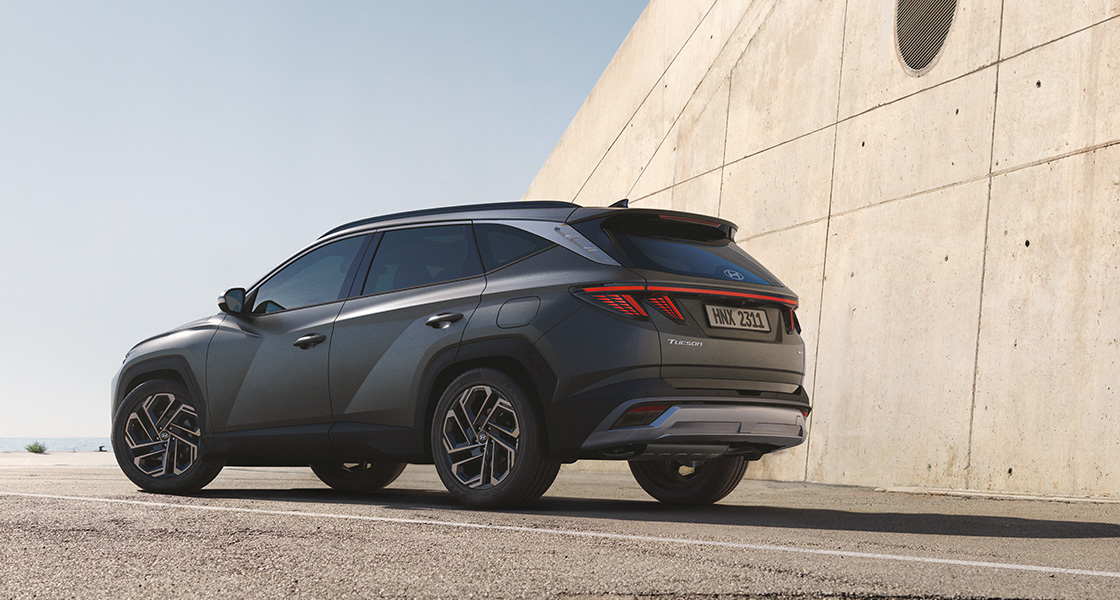

Stay safe, all around.

The capabilities of Hyundai SmartSense technologies are continually being expanded and improved to make driving ever more safer and easier.
Forward Collision-Avoidance Assist (FCA)
Drive Mode

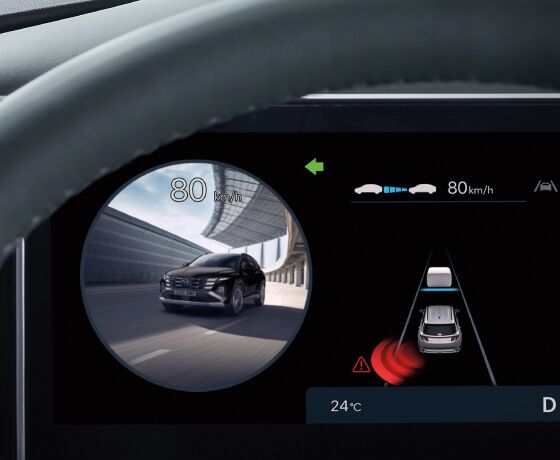

Blind-Spot View Monitor (BVM)

Drive with confidence; our live video feature allows you to check for blind spots based on your turn signal direction, ensuring safer lane changes.
  • * Only available in Prestige variant.
Drive Mode

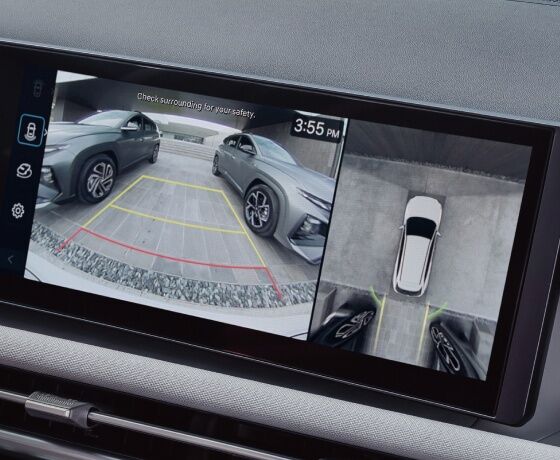

Surround View Monitor (SVM)

Maintain a bird's-eye view of your vehicle's surroundings when reversing or parking.
  • * Only available in Prestige variant.
Drive Mode

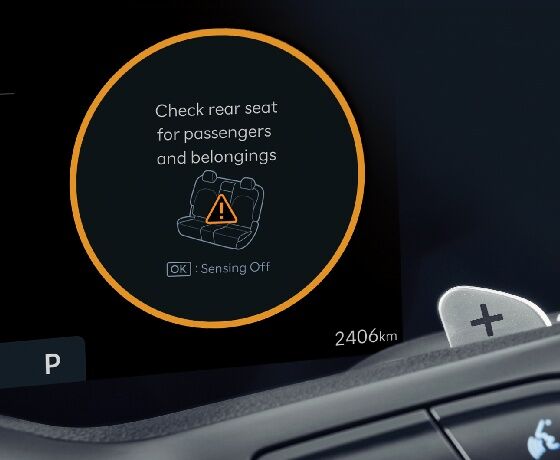

Rear Occupant Alert (ROA)

Once you reach your destination and power off, rely on ROA as your trusted companion. Remember to check the rear seats and ensure that no one is left behind.
Drive Mode

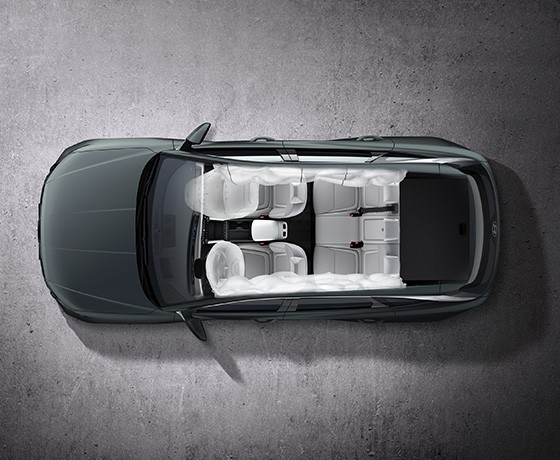

6 Airbags

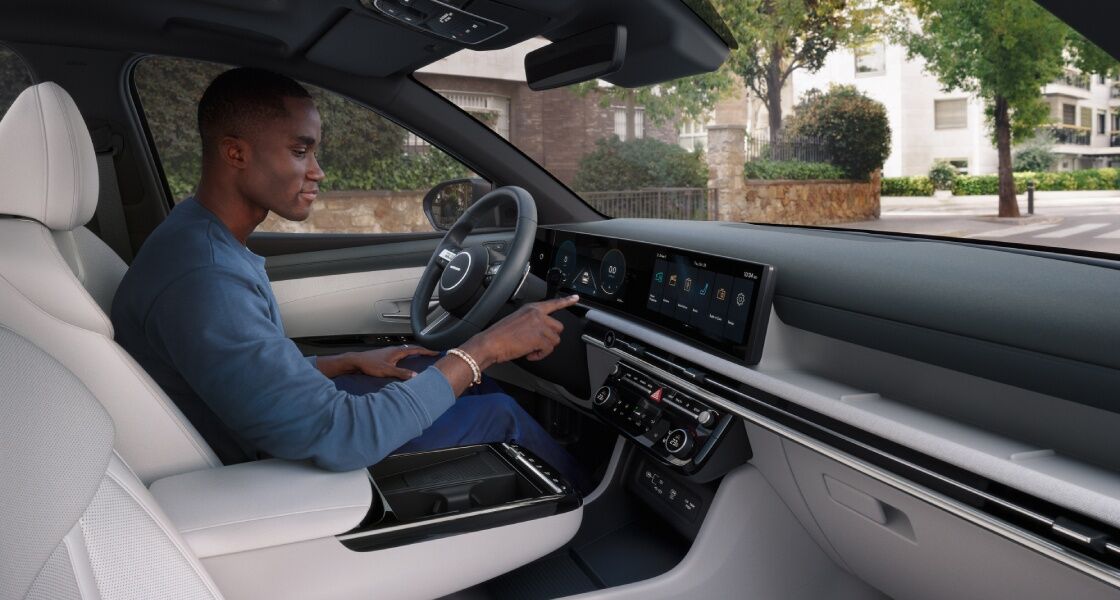

Tech up your flow

A reinvented layout with a host of intuitive technologies that enable an effortless and convenient on-the-road experience.
Tucson - Hyundai Sime Motors Malaysia

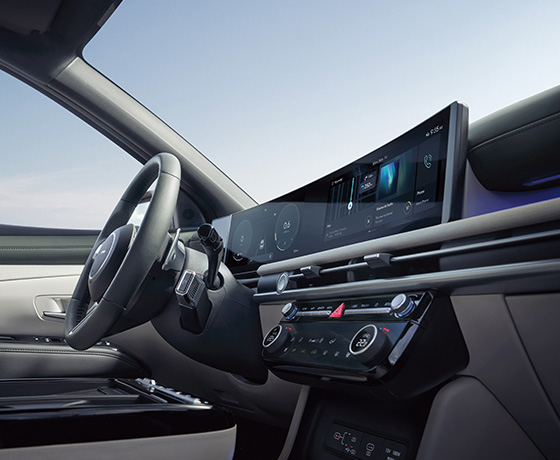

Hyundai Tucson - 12.3 inches Color TFT-LCD Full Screen Digital Display

12.3" Color TFT-LCD Full Screen Digital Display

  • * Only available in Prestige variant.

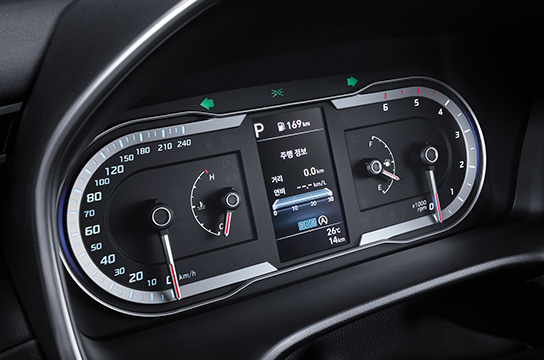

Hyundai Tucson - 4 inches TFT Digital Display

4" TFT Digital Display

  • * Only available in Style and Prime variant.

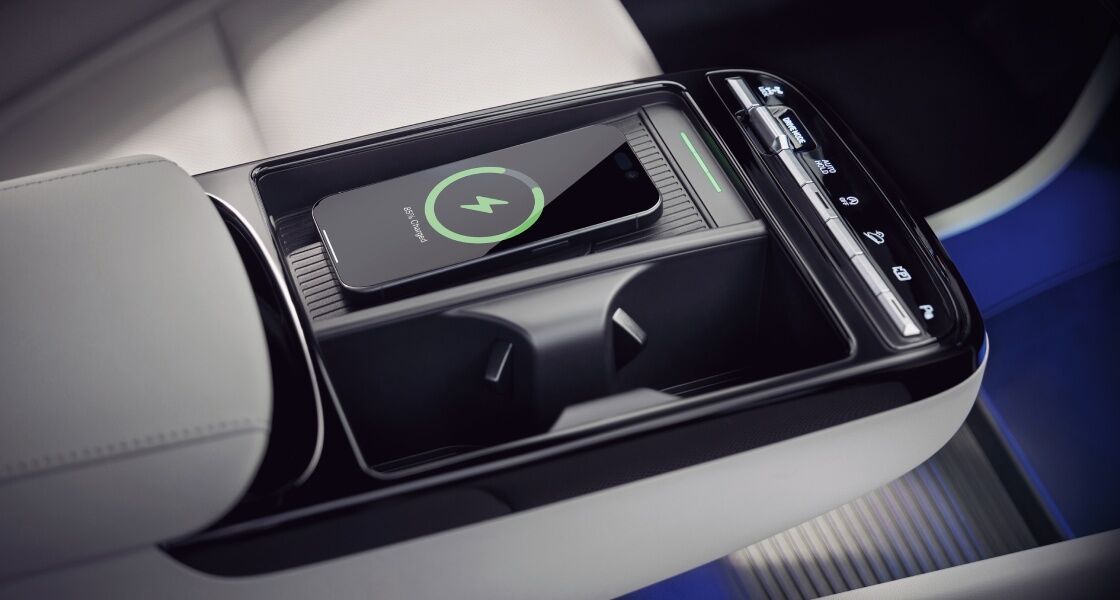

Wireless Charging Pad (Qi Standard)

Improve accessibility and visibility while you charge your devices thanks to a flat-type smartphone wireless charging function that boosts convenience and space.
Tucson - Hyundai Sime Motors Malaysia

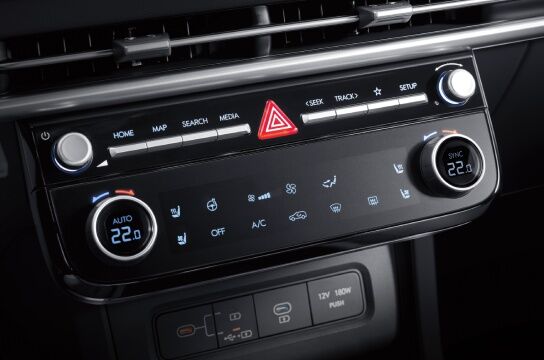

Hyundai Tucson - Full Auto Air Conditioning System

6.6" Full Auto Dual Zone Climate Control AC

Hyundai Tucson - Luggage Screen

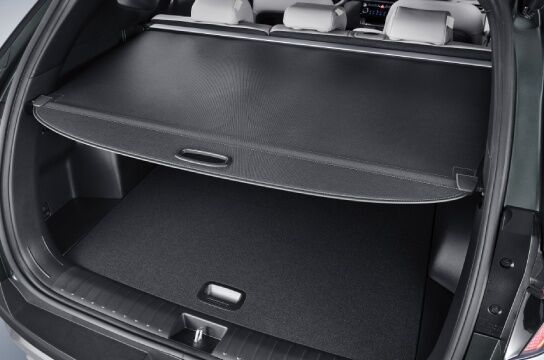

Luggage Screen

Hyundai Tucson - USB-C Data/Charging Ports

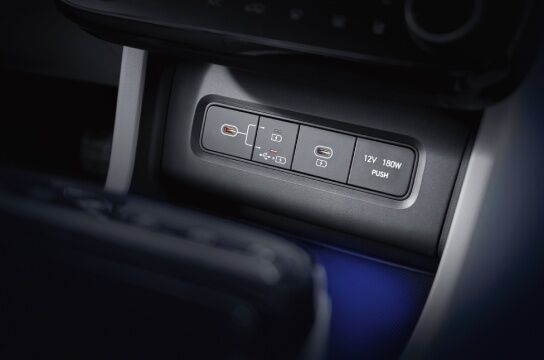

USB-C Data/Charging Ports

Specifications
The new TUCSON Style
G2.0 MPi (2WD)		 Prime
1.6T-GDi (2WD)		 Prestige
1.6T-GDi (4WD)		 Prestige
1.6T-GDi Hybrid (2WD)
Price MYR 143,888.00 MYR 164,888.00 MYR 186,888.00 MYR 197,888.00
DIMENSION
Length mm 4,640
Width mm 1,865
Height mm 1,665
Wheelbase mm 2,755
ENGINE
Number of Cylinders 4 inline
Cylinder Capacity 2.0 Litres (1,999) 1.6 Litres (1,598)
Intake System Variable Intake System (VIS) Tuned Intake System (TIS) Turbocharger Tuned Intake System (TIS) Turbocharger + Electric Motor
Maximum Power kW(PS)/RPM 115 kW (156 PS) / 6,200 RPM 132 kW (180 PS) / 5,500 RPM
Maximum Torque Nm/RPM 192 Nm / 4,500 RPM 264 Nm / 1,500 ~ 4,500 RPM
Fuel Tank Capacity Litre 54 52
Auxiliary Battery / Type V 12V / Lithium-ion
Electric Motor
Motor Type - Permanent Magnet Synchronous Motor (PMSM)
Battery Capacity / Type - 1.49 kWh/Lithium-ion
Battery Voltage - 270 V
Maximum Power - 47.7 kW / 1,800 ~ 2,100 RPM
Maximum Torque - 264 Nm / 1,700 RPM
Combined System Output
Maximum Power kW(PS)/RPM - 172 kW (235 PS) / 5,500 RPM
Maximum Torque Nm - 367 Nm
Transmission
Automatic Transmission (AT) 6-Speed Automatic 7-Speed DCT 6-Speed Automatic
STEERING
Type Column Type Motor Driven Power Steering (C-MDPS), Rack & Pinion
Minimum Turning Radius m 5.9 m (±0.2)
SUSPENSION
FRONT / REAR MacPherson Strut / Multi-Link
BRAKES
Front / Rear Brake Type Front - 16” Ventilated Disc / Rear 16” Disc
WHEELS & TYRES
Wheel Dimensions 17 x 7.0J 18 x 7.5J 19 x 7.5J
Tyre Dimensions 235/65 R17 235/60 R18 235/55 R19
Spare Tyre T135/90D17 Temporary Mobility Kit
EXTERIOR STYLING
Grille - Dark Chrome (Dark Silver H Badge) with Hidden DRL Equipped
Daytime Running Lights (DRL) - LED Equipped
Headlight Functions - Automatic Dusk Sensing with Escort and Welcome Equipped
Headlight Type - Projector Beam with Intelligent Front Lighting System (IFS) MFR with Static Bending Light Equipped
LED Rear Combination Lamp Equipped
High Mount Stop Light (HMSL) - LED Equipped

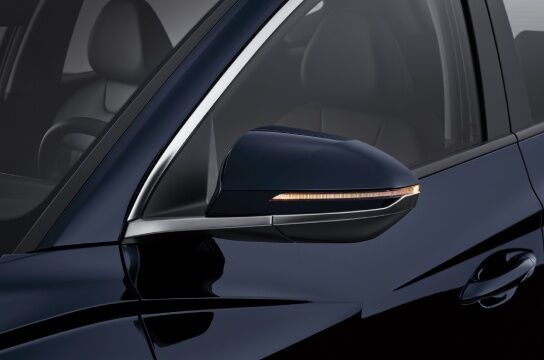

Exterior Mirrors - Heated, Power Folding and Adjustable Equipped
INTERIOR STYLING
Interior Finishes - Gloss Black & Alloy Effect Equipped
Dashboard & Door Centre Trim - Premium Cloth PVC Equipped
Headlining - Cloth Equipped
Front Room Lights and Map Lights - LED Equipped
Glovebox Compartment Light - Equipped
Vanity Mirror Lights - LED - Equipped
Ambient Lighting - LED - Equipped
Outboard Room/Map Lights - LED Equipped
Seat Material Fabric Leather
DRIVING CONVENIENCE
Electronic Parking Brake (EPB) with Auto Hold function Equipped
Integrated Memory System (IMS) - 2 Driver’s Seat and Outside Mirror Positions (Excluding Lumbar) - Equipped
Fingerprint Recognition (with Engine Start) Equipped
Rain Sensing Windscreen Wipers & Rear Wiper - with Auto Wipe When Reverse Equipped
Remote Start - via Smart Key Equipped
Tilt & Telescopic Steering Column Equipped
Drive Modes : Comfort/ECO/Sport/Smart Equipped
Terrain Mode - Equipped (SNOW/MUD/SAND) -
e-Motion Drive : e-Dynamic & e-Comfort - Equipped
Steering Column-Type Shift-By-Wire (SBW) with Paddle Shifters - Equipped Equipped (With Smart Regenerative Braking)
Driver’s & Front Passenger Seat - Power Adjustable - 8-Way - Driver only Equipped
Driver Seat - Power Lumbar Support - 2-way - Equipped
Front USB-C Power Outlets (1 x USB-C Charger + 1 x USB-C Multimedia/Charger) Equipped
Wireless Charging Pad (Qi Standard) - 1x Equipped
Centre Fold Down Armrest (Rear Seats) Equipped
USB-C Power Outlet x 2 (Rear Centre Console) Equipped
Convenience Winding Up/Down Window Function - Smart Key Remote Operated - Equipped
12V Power Outlet x 2 (Front to Rear) Equipped
Smart Power Tailgate - Hands-Free Opening; Speed & Height Adjustable - Equipped
Electro Chromatic Mirror (ECM) - Auto-Dimming Equipped
Instrument Cluster - 12.3” Color TFT-LCD Full Screen Digital Display 4" TFT Digital Display Equipped
SECUTIRY SYSTEM
Anti-Theft Alarm Equipped
Engine Immobiliser Equipped
VENTILATION & HEATING
Auto Climate Control - Dual Zone with 6.6" Touch Type Control Panel & Auto Defogging Equipped
Rear Cooling/Heating Floor Ducts - 2x Equipped
Rear Cooling/Heating Air Vents - 2x; Centre Console Equipped
1st Row Heated & Ventilated Seats - Equipped
Heated Rear Window - with Timer Equipped
MULTIMEDIA SYSTEM
12.3” HD Curved Display with Capacitive Touch, AM/FM Radio, USB-C Multimedia Input, Bluetooth® with Multi-Connection and Smartphone Connection Equipped
Advance Safety
Anti-Lock Braking System (ABS) Equipped
Brake Assist System (BAS) Equipped
Downhill Brake Control (DBS) Equipped
Hill-Start Assist Control (HAC) Equipped
Multi Collision-Avoidance Brake (MCB) Equipped
Vehicle Stability Management (VSM) Equipped
Emergency Stop Signal (ESS) Equipped
Manual Speed Limit Assist (MSLA) Equipped
Parking Distance Warning - Forward/Reverse (PDW-F/R) Equipped -
Parking Distance Warning - Forward/Side/Reverse (PDW-F/S/R) - Equipped
ISOFIX / SRS Airbags Equipped (6 Airbags)
Hyundai SmartSense
Blind-Spot Collision-Avoidance Assist (BCA) - Equipped
Blind-Spot View Monitor (BVM) - Equipped
High Beam Assist (HBA) - Equipped
Driver Attention Warning (DAW) - Including Leading Vehicle Departure Alert (LVDA) - Equipped
Forward Collision-Avoidance Assist (FCA) - Including Car / Pedestrian / Cyclist Detection + Junction Turning + Direct Oncoming - Equipped
Lane Following Assist (LFA) - Equipped
Lane Keeping Assist - Line/Road-Edge (LKA-L/R) - Equipped
Parking Collision-Avoidance Assist - Reverse (PCA-R) - Equipped
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) - Equipped
Rear Occupant Alert (ROA) - Without Sensor Equipped
Safe Exit Warning (SEW) - Equipped
Smart Cruise Control (SCC), including Stop & Go function (SCC w/ S&G) Normal Cruise Control Equipped
Surround View Monitor (SVM) - with Dynamic Parking Guidelines, Including 3D Surround View + Driving Rear-View Monitor (DRM) Function Rear View Monitor only Equipped
  • Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
  • Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
  • Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
  • Android Auto application is only available in certain region.
  • Sime Darby Auto Hyundai reserves the right to change the specifications and equipments without prior notice.
  • The colour plates or colour palettes shown may vary slightly from the actual colours due to limitations of the printing process.
  • Please consult your respective sales advisor for full information and availability on colours and trims.
  • Specifications, colours, and car shown may differ from those in the brochure and subject to change without prior notice.
  • Some of the specifications illustrated may not be supplied as standard and may be avaiable at extra cost.
  • Smart Phone connectivity is only applicable to selected models. Please check with your smart phone manufacturer regarding to the compatiblity.
  • Android Auto application is only available in certain region.
  • Sime Darby Auto Hyundai reserves the right to change the specifications and equipments without prior notice.
  • The colour plates or colour palettes shown may vary slightly from the actual colours due to limitations of the printing process.
  • Please consult your respective sales advisor for full information and availability on colours and trims.
Quick Menu
Page sharing
close Payment Estimator
Total Amount
MYR 0.00
*Prices are inclusive of sales tax and excise duty and subject to change without prior notice. Only valid in Peninsular Malaysia.
Monthly Instalments
MYR 0.00
Repayment Period (Years)
